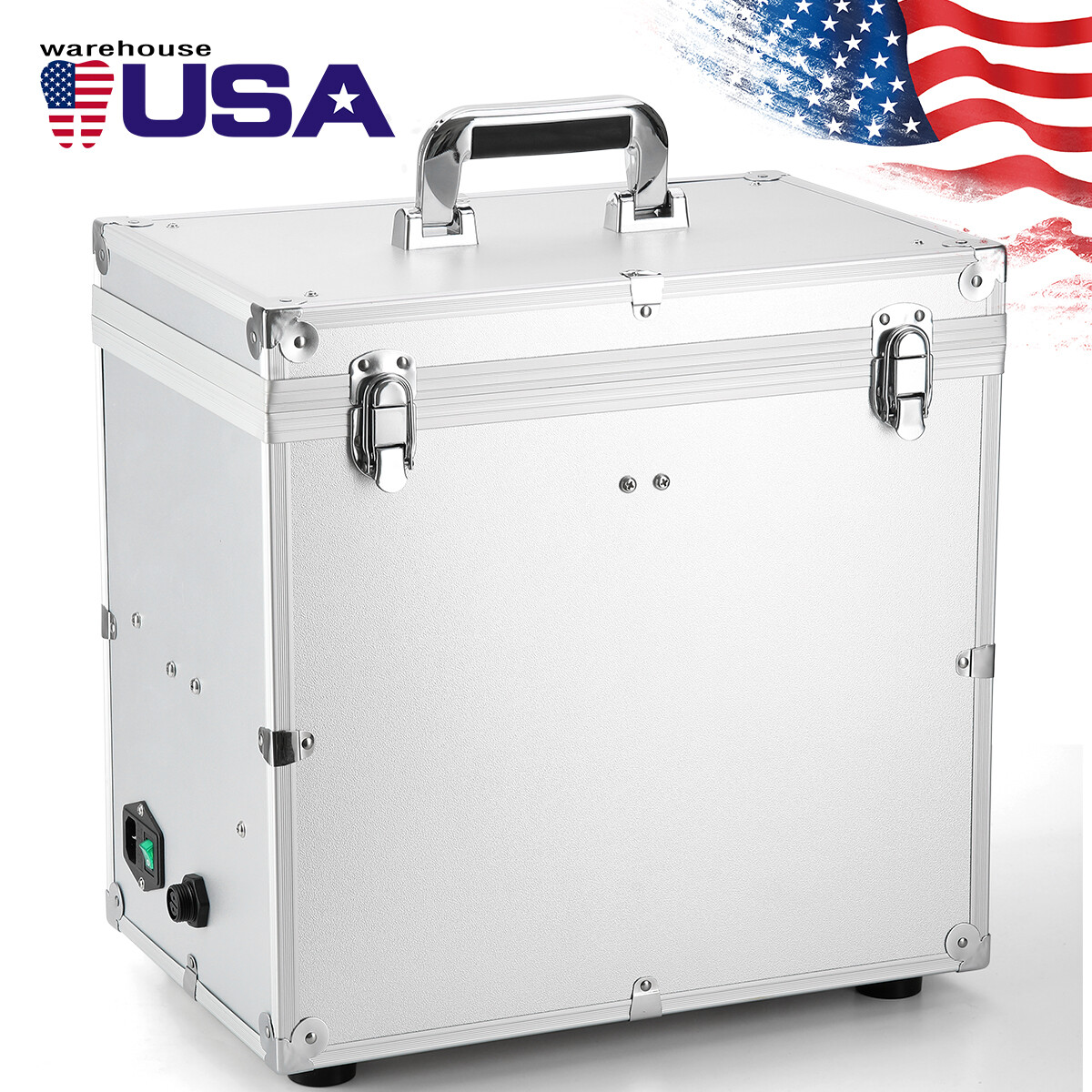

Portable Delivery Unit Air Compressor

TJ2688-A1

Standard Accessories:

All controlled by the electric valve
DC Motor
Automatic thermostatic water supply system
Compensate Wider Dental Unit
Handpiece tubing with standard fittings (3sets)
Three way springe (one for hot ,one for cold)(2sets)
Water suction and saliva ejector (1set)
Powerful suction (HVE) apparatus (1set)
Easy cleaning Integral ceramic spittoon
Built-in Water purified system with bottle
Strong and weak dual-purpose operation light (1set)
Low-tension X-film viewer (1set)
Spirit lock tight Equilibrium Device
Doctor stool (1set)
Suitable for adult and children headrest
Foot pedal (1set)

Gross weight: 200 Kg

Specifications:
Model: TJ2688 A1
Supply Voltage (110V 50Hz or 220V 50Hz )
Air Pressure (＞0.55Mpa)
Water Pressure (0.2Mpa-.04Mpa)
Lowest position of Dental chair (17.32”)
Highest position of Dental chair (33.86”)
Highest smallest angle of Dental Chair ( 5°)
Lowest smallest angle of Dental Chair ( 85°)

```````````````````````````````````````````````````````````````````````````````````````````````````````````````````````````````````````````````````````````````````````

   TJ2688-A1-1

  Feature:

1. All controlled by the electric valve

2. DC Motor

3. Automatic thermostatic water supply system

4. Handpiece tubing with standard fittings (3sets), Three way springe (one for hot, one for cold)(2sets), Water suction and saliva ejector (with switch)(1set), Powerful suction apparatus (1set each)

5. Easy cleaning Integral  Ceramic spittoon

6. Strong and weak dual-purpose operation light (1set),

7. Water purified system with bottle of built-in

8. Spirit lock tight Equilibrium device

9. Doctor stool (1set), Foot pedal (1set)

10. Suitable for adult and children headrest.

11.Built-in ultrasonic scaler N2

12.All-in-one tray integrates storage, cup holder and tissue box. (1set)

Voltage:110V,50Hz/60Hz

Air pressure:0.55MPa

Water pressure:0.2MPa-0.4MPa

Maximum position:860mm

Minimum position:440mm

Spittoon:Ceramic

Instrument tray:Liftable mobile trolley

Color:7 colors optional

Net weight:180kg

Gross weight:200kg

Packing size:138*120*100cm

Note: This product is only suitable for 110V voltage, please do not use 220-240V voltage, as 220-240V will cause the machine to burn out.

BUILT-IN ULTRASONIC SCALER N2

All-in-one tray integrates storage, cup holder and tissue box.

The height of the trolley can be adjusted up and down, which is suitable for more use environments.

The Liftable mobile trolley is equipped with a multi-function operation panel, which can be used and adjusted as required. Guaranteed absolute freedom of work and can be placed in the ideal position at will, Whether the doctor is right-handed or left-handed. The Liftable mobile trolley is designed to respond instantly.

The Liftable mobile trolley is equipped with a tray, which can place the treatment items in advance,The anti-drop card slot is used to place the treatment mobile phone, which is more convenient to use. Which meets Aseptic requirements and efficiently cooperates with doctors to complete implant treatment.

````````````````````````````````````````````````````````````````````````````````````````````````````````````````````````````````````````````````````````````````````````````````

Specification:
Model: BD-402
Supply Pressure: 110V/50Hz~60Hz
Power:  700W
Speed R.P.M: 1400r/min
Air Flow: 65L/min
Pressure: 0.8Mpa
Noise : 39dB(A)
Net Weight: 17.5Kg

Gross Weight: 19.0Kg
Dimension: 49cm×38cm×37cm

Note: This product is only suitable for 110V voltage, please do not use 220-240V voltage, as 220-240V will cause the machine to burn out.

Standard Accessories:
High speed Handpiece Pipe 1 set
Low speed Handpiece Pipe 1 set
Three Way Syringe 1set
Oilless Air Compressor 1set
Water bottle 1pc
Suction System1pc
Drain bottle 1pc
Foot Control  1pc

Optional:
High Speed Handpiece
Low Speed Handpiece

[NOTE]: 4 Hole is available, we send 4 Hole by default!

````````````````````````````````````````````````````````````````````````````````````````````````````````````````````````````````````````````````````````````````````````````````

Technical Data
Model:BD-406 Portable Dental Unit
Votalge: 110 V/60Hz, 220V/50Hz
Power:600W
Air Flow:130L/min
Pressure:0.8Mpa
Net Weight:29Kgs
Gross Weight:34Kgs.
Noise:40dB.
Packing Size: 56*42*76cm.

Standard Accessoiries：
Oiless Air Compressor Motor   1pc
3 Way-Springe  1pc
High Speed Handpiece Pipe 1pc
Low Speed Handpiece Pipe 1pc
Built in Ultrasonic Scaler 1pc
Built in LED Light Curing Unit 1pc
High Suction(Ajust)  1pc
6L Air Tank  1pc
Water Bottle 1pc
Drain Bottle 1pc
Foot Control 1pc

Safety Guidelines:
1, Before operating the unit, please read the manual carefully and preserve it for future reference.
2, Please operate and maintain the unit strictly in accordance with the operational instructions.
3, The user should read the instructions supplied with the dental unit carefully.
4, Symbol “Attention” denotes that before using the device, read the operating manual carefully and carry out all the instructions to avoid any damage or injury.
5, Please contact the local agent or the manufacturer if the unit needs repairs. We will supply a high quality of service and assistance for you.

Warning:
1 The power switch should be turned off when the machine stopped working, the transformer and solenoid valves will heat to burn if long-term power or no stop the power.
2. Please drain off the water when the water on 2/3 of Suction bottle, the water will come to motor if the water is higher than 2/3 on suction bottle, the air motor will leakage of electricity or burn if the water come to air motor.

[NOTE]:Both 4 Hole and 2 Hole are available, we send 4 Hole by default!

 ``````````````````````````````````````````````````````````````````````````````````````````````````````````````````````````````````````````````

Technical data
Model:B033 Portable Dental Unit
Votalge: 110 V/60Hz,
Power:550W

Speed R.P.M:1400r/min
Air Flow:65L/min
Pressure:0.6Mpa
Net Weight:48Kgs
Gross Weight:65Kgs
Noise:40dB
Packing Size: 57×57×107CM

Note: This product is only suitable for 110V voltage, please do not use 220-240V/50HZ  voltage, as 220-240V/50HZ will cause the machine to burn out.

You can purchase 220V products separately.

Standard Accessories:

* 1pc saliva ejector;

* 1pc 3 way syringe;

* 1pc high speed handpiece tube(2 holes or 4 holes);

* 1pc low speed handpiece tube(2 holes or 4 holes)

* 1pc ultrasonic scaler;

* Self contained clean water container;

* Self contained waste water container;

* Self contained dental compressor with cabinet 550W;

* Self contained 13L compressed air tanks

* Self contained Foot control system.

* Self contained Curing light;

Optional Accessories:

* Additional Aspirator;

* Dental Handpiece;

* Upgrade of fiber optic handpiece tube;

Packing & Delivery   Wooden Box

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

FDA Statement

The sale of this item may be subject to regulation by the U.S. Food and Drug Administration and state and local regulatory  agencies. If so, you can bid on this item only if you are an authorized purchaser. If the item is subject to FDA regulation, I will verify your  status as an authorized purchaser of this item before shipping of the item.
